Denagene Tajhiz

DeNA Cycler 32

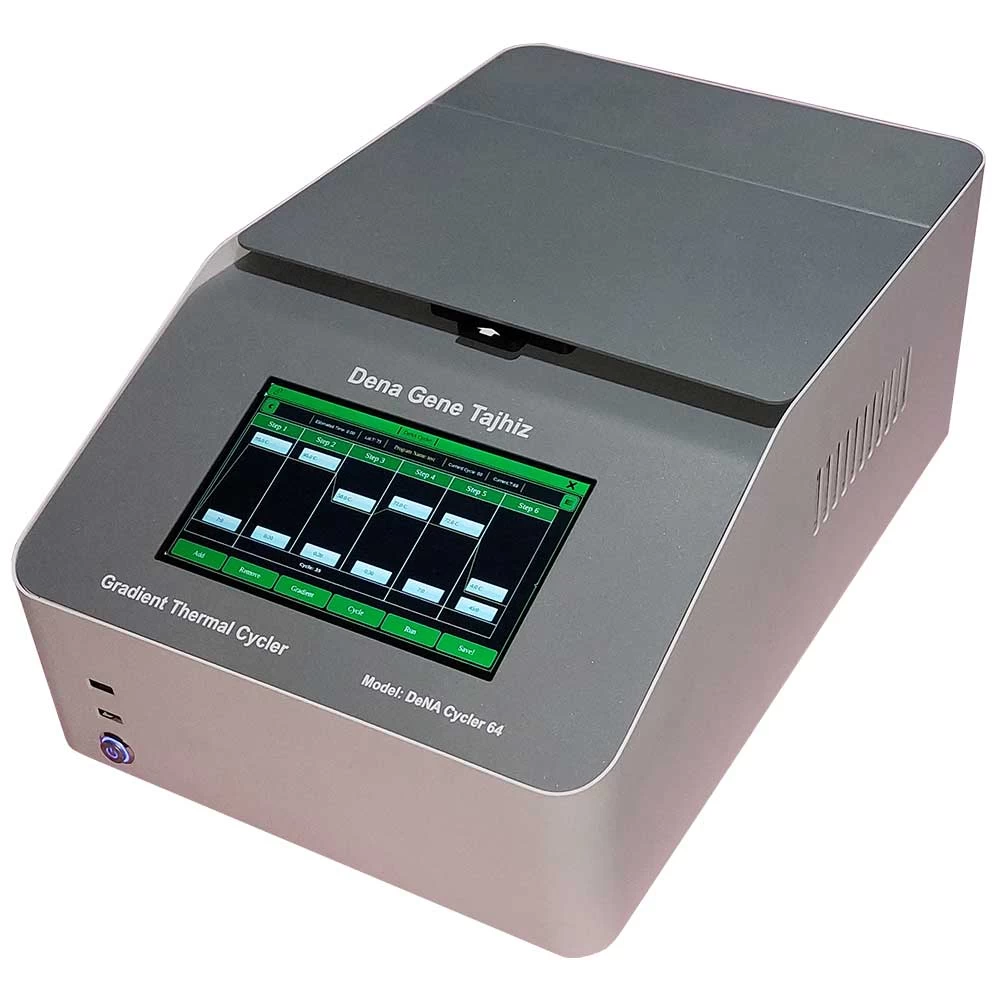

DeNA Cycler 64
Product Code: DNT-ETC64
Denagene Tajhiz Company is a manufacturer of various types of thermal cyclers, including simple and gradient models. The company has also produced the DeNA Cycler 32 Eco, an economical PCR device. Educational, scientific, and research centers can acquire this model of thermal cycler at a low cost. Nowadays, many genetic diseases such as mutation detection, cancers, hemophilia, AIDS, thalassemia, cystic fibrosis, tuberculosis, muscular dystrophy, phenylketonuria, and more can be diagnosed using PCR technology.
مدل‌های محصول:
Products Price

Gradient Thermal Cycler 64

A thermal cycler, also known as a PCR machine, efficiently performs the amplification of nucleic acids using Peltier technology. By amplifying DNA, various downstream processes such as diagnostics, cloning, genotyping, and sequencing can be easily performed. The thermal cycler itself comes in both standard and gradient types. In the gradient mode, multiple temperatures can be applied simultaneously. Integrating the gradient feature into the thermal cycler system enables processes like primer optimization to be efficiently and rapidly conducted. Denagene Tajhiz has designed and produced both standard PCR and gradient PCR modes, offering them in the market. The thermal cycler's excellent ramping speed allows users to define ramp rates ranging from 0.1 to 4 degrees Celsius per second for a PCR reaction. Denagene Tajhiz’s gradient PCR devices provide a variety of models, professional device construction, suitable ramp rates, and incredibly user-friendly software, enhancing the experience of molecular work for users. We hope that by providing high-quality Iranian products to researchers and experts, we can contribute modestly to scientific advancement in our country.

Applications

  • Immunology
  • Forensic Science
  • Cancer Diagnosis
  • Population Biology
  • Paleontology
  • Zoology
  • Plant Science Research
  • Clinical Diagnostics of Viruses, Tumors, and Genetic Diseases

Features

  • Uniform Temperature Throughout the Block
  • Various Programmable Settings and Infinite Mode
  • Dynamic Programming System
  • Excellent Temperature Control System
  • Suitable Ramping Rate
  • Eco Mode Capability
  • Ability to Define Temperature Zones with High Precision (Instead of Temperature Gradient)
  • 18-Month Warranty
Download Brochure
Download User Manual
Technical Specification
Model DeNA Cycler 32
Sample Capacity (ML) 0.2*32
Temperature Range (°C ) 4-100
Temperature Control Accuracy (°C ) 0.4
Average Temperature Rise Rate(°C ) 3
Average Rate Of Temperature Decrease (°C ) 2.5
Maximum Rate Of Temperature Change (°C ) 4
Temperature Uniformity ±0.4 at 50
Maximum gradient regions (-)
Gradient Range (-)
Lid Temperature (°C ) Default on 105, but can be variable
Thermal Blocks Mode Yes
Maximum Number Of Steps (°C ) 100
Maximum Number Of Cycles 100
Maximum Number Of Programs Unlimited
LCD Display Run on computer
USB Port Yes
WIFI Yes
Dimensions (height*width*length CM) 17*26*40
Weight (KG) 6.5
Operating Temperature (°C ) 10-30
Power (W) 250
